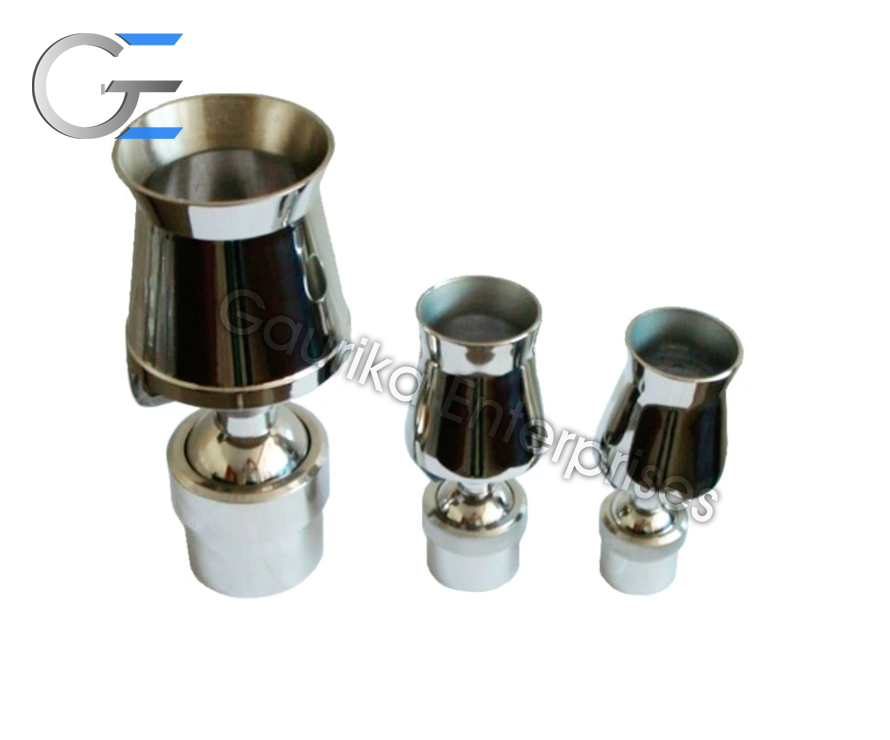

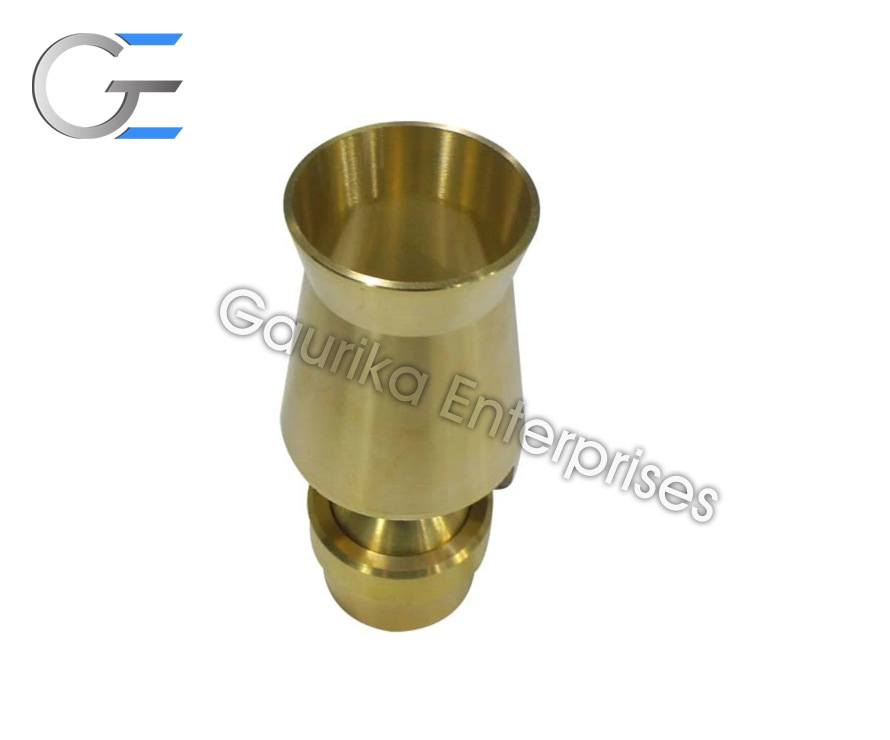

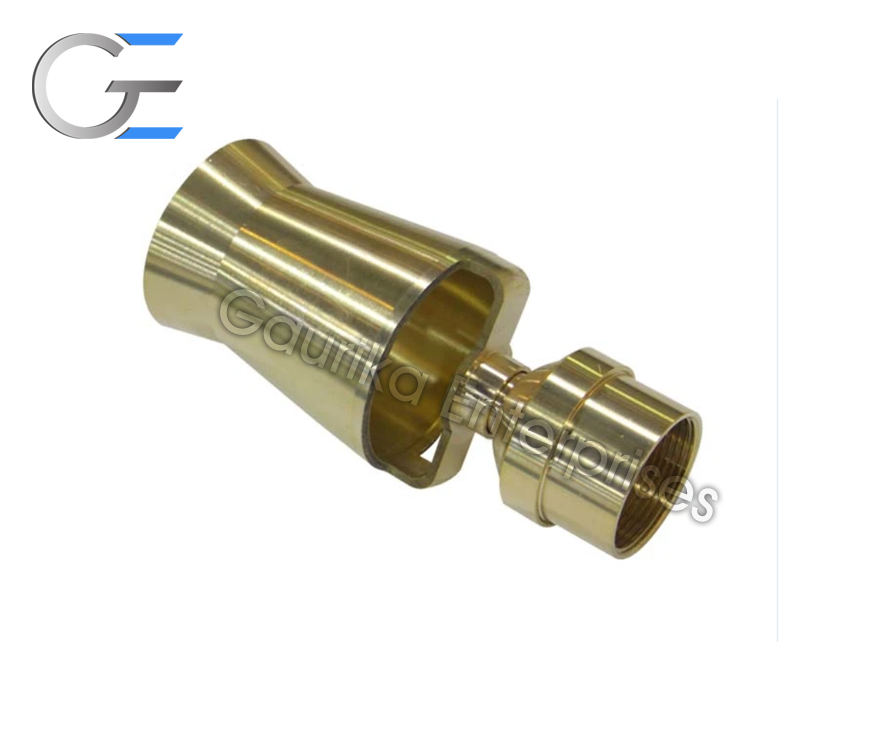

Cascade jet nozzles are one of the most widely used in architectural fountains. If it is installed with the level of water stipulated by the manufacturer, it generates a very attractive cone of sparkling water. The water coming out of the cascade jet nozzle draws a column of water from the fountain pond, and it produces a great deal of turbulence. Three different water levels in the pond can be used to produce different water features: a very high cone with a small base or a cone with less height and a wider base.
| Model No. | Connection size | Pressure | Amount of Water (m³/h) | Height (M) | Diameter (M) |
|---|---|---|---|---|---|
| GE 1001 | 3/4" | 40-200 | 2-4 | 1-2.5 | 0.2 |
| GE 1002 | 1" | 40-200 | 6-10 | 1-4 | 0.3 |
| GE 1003 | 1-1/2" | 50-330 | 8-20 | 1-5 | 0.6 |
| GE 1004 | 2" | 50-400 | 12-25 | 1-6 | 1 |
| GE 1005 | 3" | 50-450 | 21-50 | 1-12 | 1.5 |
